Monopine Tower New Sector and Antenna Installation

Case Study:

How to Save 2X on Equipment and Crew Time Needed for a Monopine Tower Antenna Installation

What was the challenge?

A global provider of turnkey telecom site development was contracted to install new antennas for a federally-licensed carrier on a New Jersey monopine tower. The provider required quick and efficient project completion because the acceleration of the transition to 5G gave them the opportunity to take on more projects.

With increased market demand, the telecom provider sought new efficiencies to complete more projects without hiring additional staff.

Typically, this job requires at least four people, plus crane and manlift rentals: JLG or similar manlifts cannot be used to hoist antennas, sectors, or pine towers’ artificial branches.

A crane would only be needed for a couple of hours to lift the assembled sector, yet its rental requires at least two days. Besides crane and lift operators, more personnel would be needed to assemble the naked sector on the ground and complete the installation.

A referral was made to Alpha Platforms because we’d completed several telecom site jobs in this area, quickly and for less.

What was the solution?

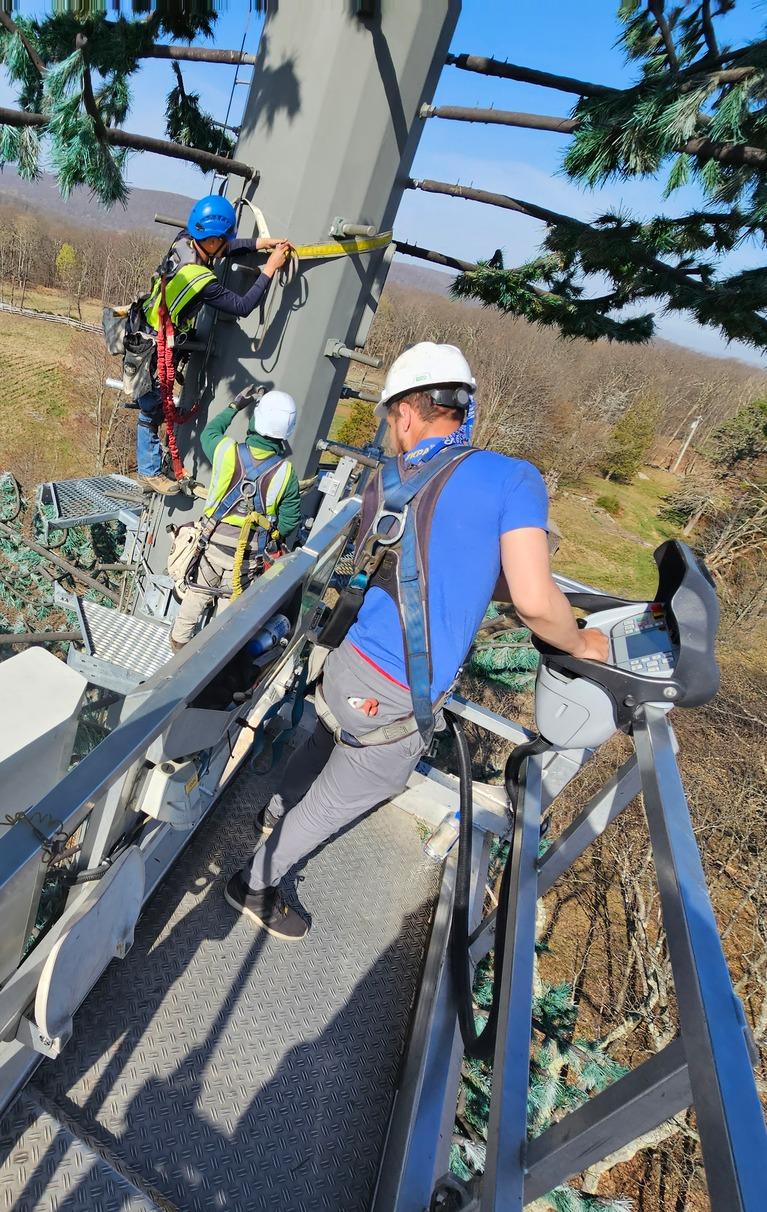

Monopine Tower New Sector and Antenna Installation Alpha Platforms Boom Lift  A-150 Crew in manlift
1
Alpha Platforms dispatched its A-150 – the smallest of the A-series – reaching 150 ft high and accommodating 1,322 lbs in its oversized, 12-foot basket. It can easily fit several telecom technicians, tools, and equipment.
2

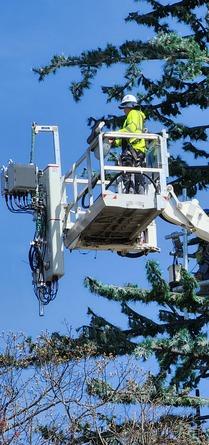

Our cage is equipped with Power Lift System™ and can lift up to 900 lbs of hoisted antennas, a naked sector or other parts attached to the cage, effectively replacing the need for a crane for many telecom jobs.
3
The specs of our state-of-the-art A-150 lift:
Details

What was the outcome?

The project was completed in just two days, including antenna mounts installation, 3 sectors, 9 antennas and all cables setup, installation, and connection.

The client reduced equipment and personnel costs by renting only one boom lift and employing just two technicians for this project.

On Day 1, the work lasted from 8 am to 6 pm: quickly removed pine branches, installed antenna mounts, naked sector, and some assembled antenna mounts with radios. And on Day 2, from 8 am to 4 pm, the rest of the antennas, radios, and cables were installed.

video
Our precise German-made lifts have become the height access method of choice for those who try them, as they combine unmatched productivity, safety, and reach.
Play video
Notable 150 Foot Boom Lift Capabilities
  • 12-foot extra large cage
  • 1,322 lbs lifting capacity for crew, equipment, and materials
  • Side reach up to 95 feet
  • Parking on a slope up to 10°
  • Jib length 31’ 6’
  • Parking in tight spaces 8’6’’ wide
  • Cage rotation 2 x 80°
