Case Study:

How Our 300-ft Boom Lift Collaborated with a 300-Ft Crane to Replace a Huge Sign at 240 ft in Half a Day

What was the challenge?

Children’s Hospital of Philadelphia (CHOP) is the nation's first hospital devoted exclusively to the care of children since 1855. Their Abramson Research Center is located across the street from the main building connected by the glass skybridge. CHOP updated its logo and replaced them on all buildings except for one. The Abramson Research Center’s old logo with broken lights still needed replacement.

The Abramson Research Center’s building sign is located atop its 240-ft tower that rises above its roof. The roof has a BMU designed to be moved up and service the tower if needed. Curiously, when the skybridge across the street was built, its placement right under the tower made it impossible to move the BMU to the tower roof anymore, eliminating the only path to access the sign. As a result, the sign's broken lights have not been replaced because the BMU could no longer be used to service the tower.

Without a BMU, the only option was to use a crane basket and crane to remove and replace the sign. The old sign was weathered and fragile, requiring gentle care, which made using a crane basket extremely risky.

A local family-owned and operated, full-service signage and lighting fabricator that’s been in business for more than 100 years was engaged to replace CHOP building signs.

What was the solution?

Philadelphia CHOP Sign Replacement With Crane Collaboration 300 ft Boom Lift Man Basket
1

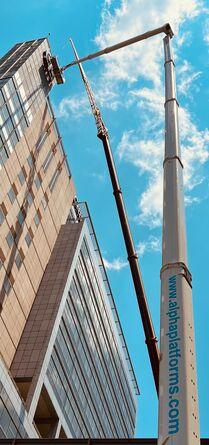

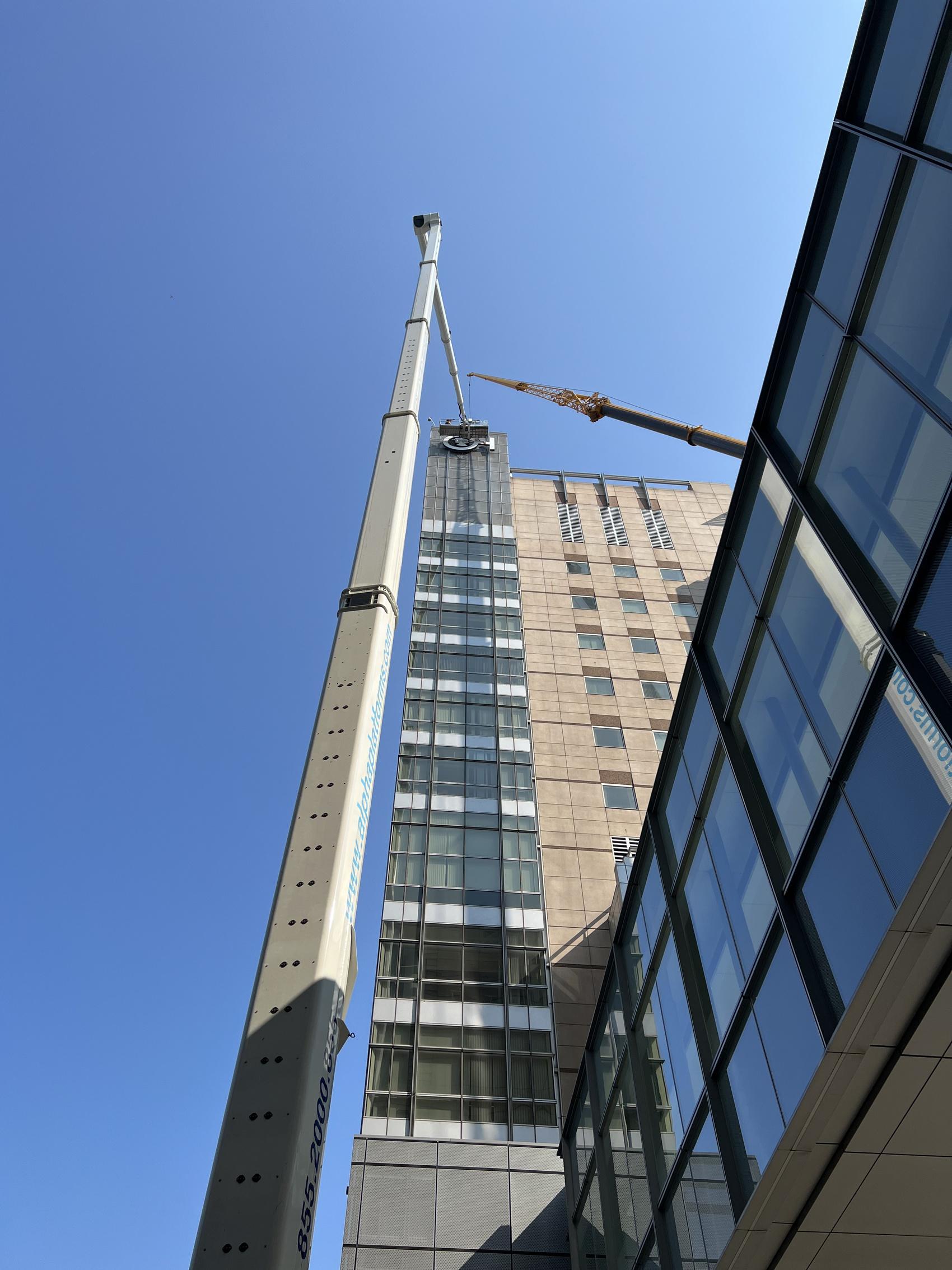

The client engaged Alpha Platforms and a local crane company to remove the old sign and install the new one. Given the height of the building and the required 55-ft side reach, we dispatched the A-300, our largest boom lift at 300 ft, capable of 106-ft side reach.
2

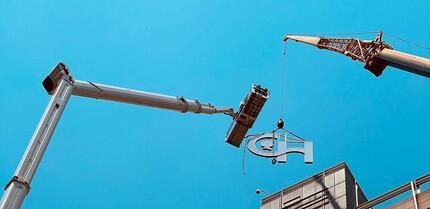

Two sign company technicians attached the old sign to the lifting hook, removed it, and carefully lowered it to the ground.
3
They adjusted the old pins to fit the new sign hooks, lifted the new sign from the trailer with the crane, attached the sign to the pins, and turned on the new lights.
4
These signs were extremely fragile and could not withstand accidentally hitting anything. That meant swinging from a crane's hook was not an option. So, the crew attached them to the lift cage as well for extra stability on the way up and down. Our full-time operator managed the lift during the entire process, enabling the crew to solely focus on the job at hand.
5
The specs of our state-of-the-art A-300 lift:
Details

What was the outcome?

On Saturday, the work crews blocked one side of the street and completed the entire project in half a day, between 10 am and 3 pm.

Our 300-ft boom lift was the only available option to lift the workers and maneuver a gentle approach for dismantling and installing the signs at 240 ft with 57 ft of side reach without risking damage.

video
Our precise German-made lifts have become the height access method of choice for those who try them, as they combine unmatched productivity, safety, and reach.
Play video
Notable 300 Foot Boom Lift Capabilities
  • 12-foot extra large cage
  • 1,168 lbs lifting capacity for crew, equipment, and materials
  • Cage rotation 2 x 84°
  • Side reach up to 106 feet
  • Unique "under and up" or "up and over and back" access
  • Smooth controlled motions to move close to and around glass and fragile structures
  • Jib length 31’6’’
  • Parking in tight spaces 8’6’’ wide
