165-Foot Boom Lift
A–165′

property-1
166’ / 51 m
Max working height
property-4
98’ / 30 m
Max horizontal outreach
property-3
1,322 lbs / 600 kg
Max cage load
property-2
1,540 lbs / 700 kg
Max heavy duty cage load
decor-9

A-165 PLATFORM

The A-165 boom lift is designed for maximum versatility and efficiency in height access operations. With its 166-foot working height and 98-foot outreach, this model provides exceptional reach while maintaining a compact and maneuverable design.

Built on a rugged Kenworth T480 chassis, the A-165 is Bridge Law legal and ready for various job sites, from urban settings to complex infrastructure projects. The multi-beveled boom profile ensures superior stability, while the articulated top boom and 440° basket rotation provide unmatched maneuverability in tight spaces.

The spacious 12.5-foot cage supports up to 1,300 lbs, making it ideal for crews and heavy equipment. Advanced features like auto outrigger leveling and the Cockpit Intelligent Control System streamline setup and operation, enhancing productivity and safety.

Whether you're working on telecom towers, bridges, or high-rise façades, the A-165 delivers reliable performance for even the most challenging height-access jobs.

iconHEIGHT REACH
A-165' Height reach

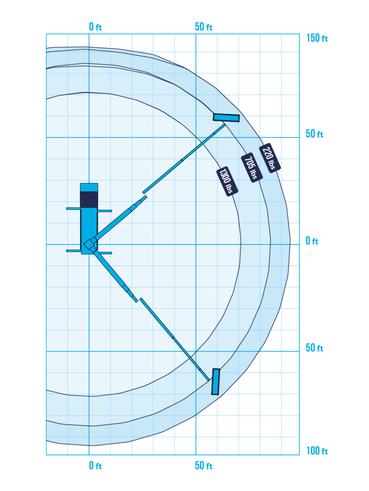

iconSIDE REACH
A-165' Side reach
Max. working height
166’ / 51 m
Max. cage floor height
161' / 49 m
Max. horizontal outreach
98’ / 30 m
Max. working range bellow floor level
38’ / 11.5 m
Max length of jib boom
24’11'' / 7.6 m
Turntable rotation
500 degrees
Min. stabilizer spread
8’4” / 2.55 m (within truck width)
Max. stabilizer spread
20'4” / 6.2 m
Unit dimensions in transport position
34’1” x 12’10” x 8’4” / 10.4 m x 3.92 m x 2.55 m
Gross vehicle weight
44,000 lbs
Max. extendable cage load
1,322 lbs / 600 kg
Extendable cage dimensions
12’6” x 3’6” x 3’7” / 3.82 m x 1.07 m x 1.1 m
Max. heavy duty cage load
1,540 lbs / 700 kg
Heavy duty cage dimensions
8’ x 3’6” x 3’7” / 2.42 m x 1.07 m x 1.1 m
Cage rotation
2 x 220 degrees
Socket in the basket
230V / 110V / 24V DC
Hydraulic power outlet
200 bar (2,900 PSI), 10 l/min (2.6 GPM)
High pressure air line / heater / A/C / halogen lights inside the cage
Movable cage controls panel with graphic display
Secondary controls station at a turntable
Rain cover, sunshade, hoist, winch

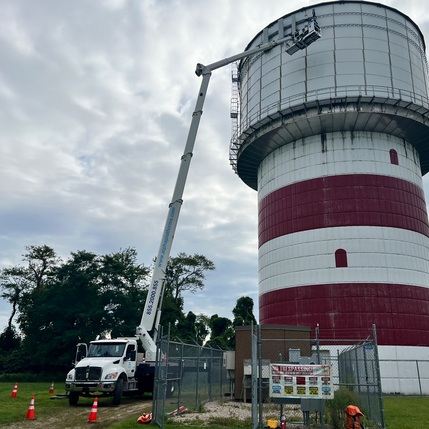

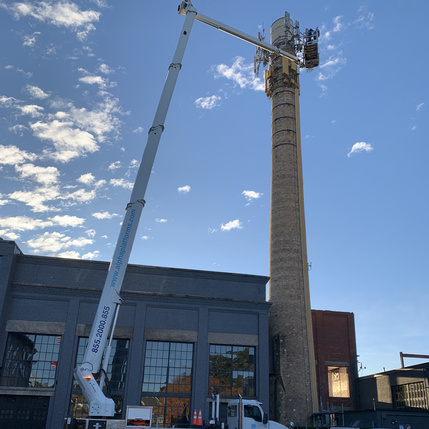

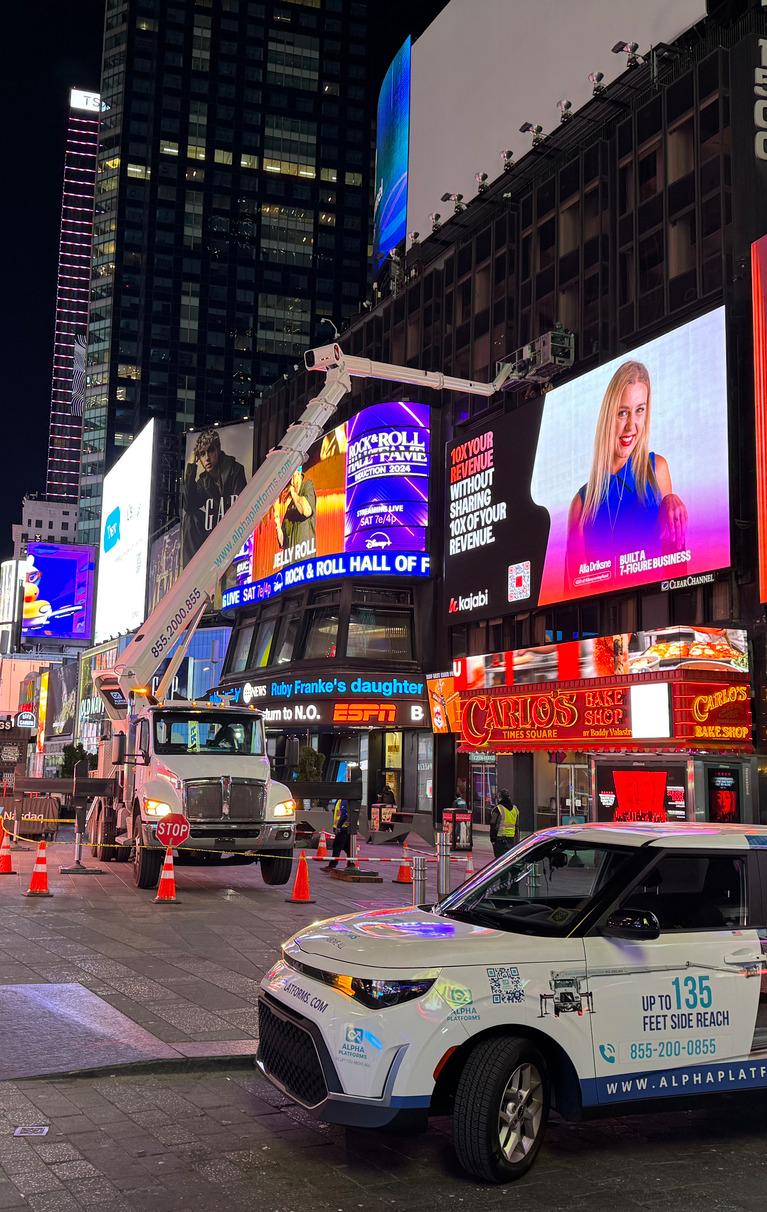

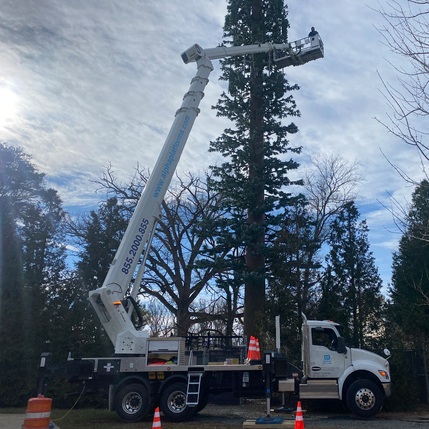

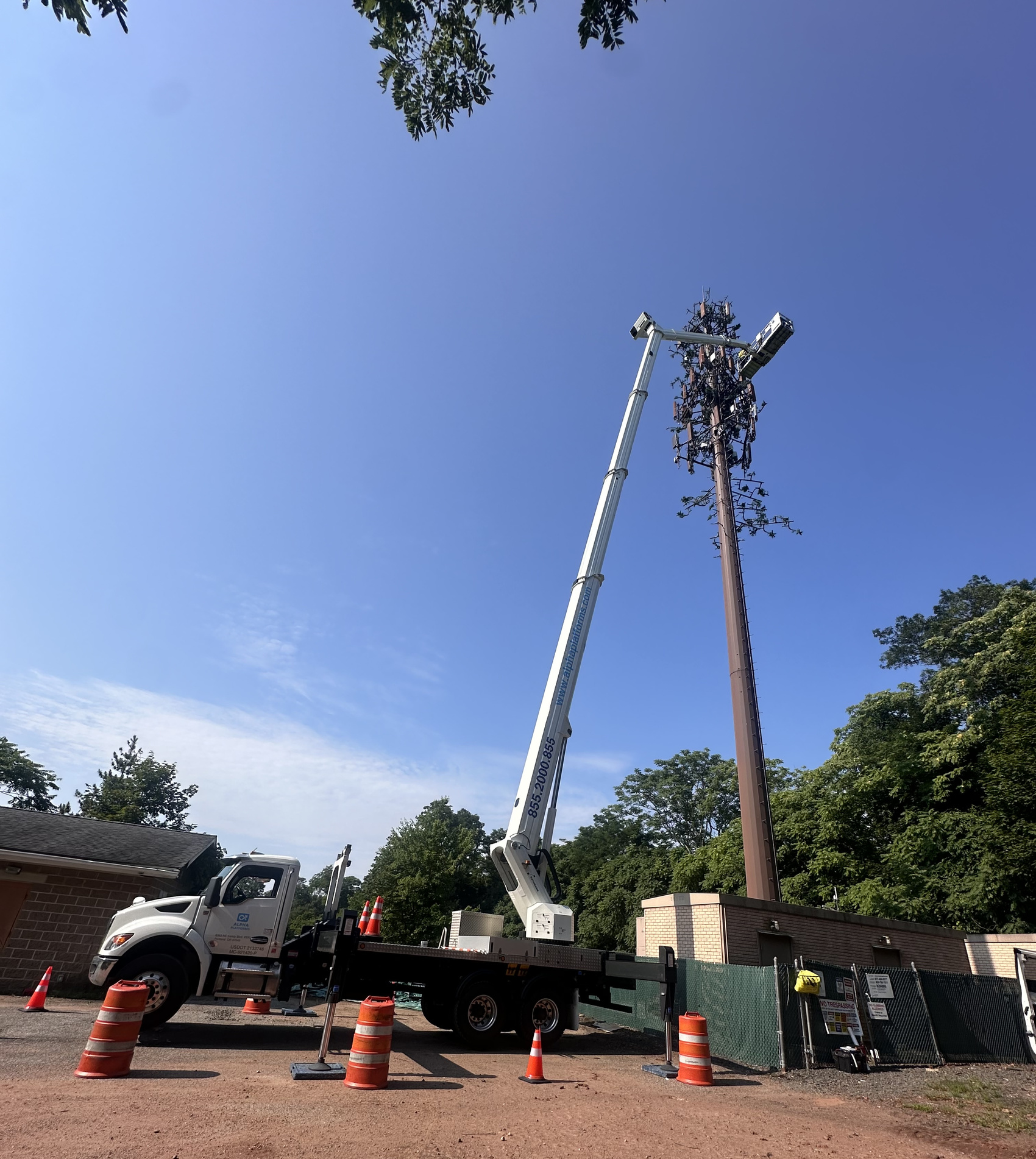

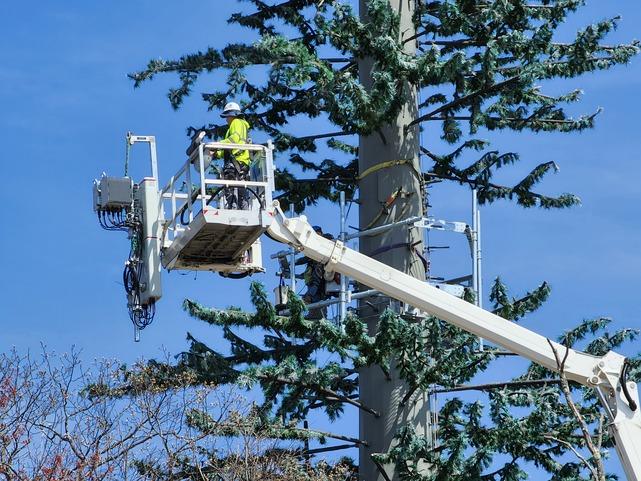

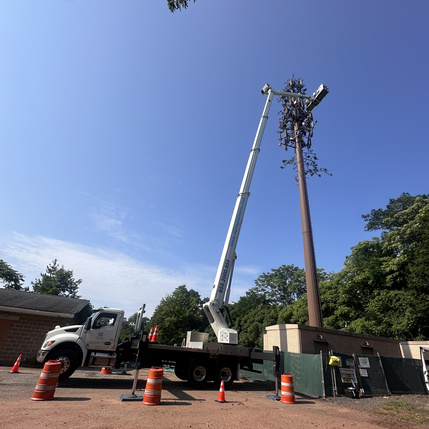

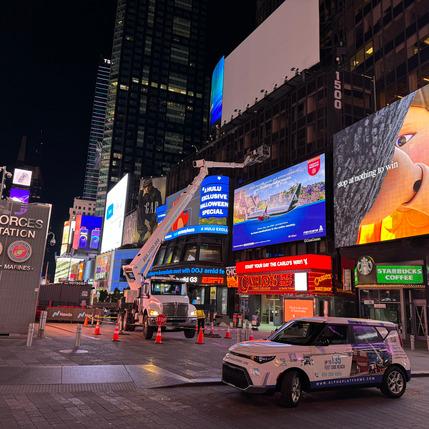

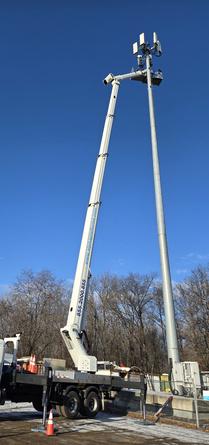

165 FT BOOM LIFT AT WORK

See Other Boom Lift Heights

The tallest boom lift in the world - 300 Ft Boom Lift
300 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 300’ / 90 m
Side reach: 106’ / 32.3 m
Cage load: 1,168 lbs / 530 kg
250-foot-boom-lift
250 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 246’ / 75 m
Side reach: 128' / 39 m
Cage load: 1,322 lbs / 600 kg
230-foot-boom-lift
230 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 230’ / 70 m
Side reach: 115’ / 35 m
Cage load: 1,322 lbs / 600 kg
210-foot-boom-lift
210 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 210’ / 64 m
Side reach: 133’ / 40.5 m
Cage load: 1,322 lbs / 600 kg
190-foot-boom-lift
190 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 187’ / 57 m
Side reach: 135’/ 41 m
Cage load: 1,322 lbs / 600 kg
175-foot-boom-lift
175 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 175’ / 53 m
Side reach: 130’ / 39.5 m
Cage load: 1,322 lbs / 600 kg
150-foot-boom-lift
150 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 148’ / 45 m
Side reach: 95’ / 29 m
Cage load: 1,322 lbs / 600 kg
exellence-1
Extreme Boom Reach
Hard-to-believe capabilities of height reach (up to 300 feet), side reach (up to 135 feet), up and over reach (up to 100 feet), and any hard-to-reach places.
exellence-2
Crew Safety and Accident Prevention
With three built-in overload and reach control systems, our lifts minimize the impact of human error.
exellence-3
Large Heavy-Duty Basket
Our 12-foot basket accommodates up to 6 people. It lifts up to 1,322 lbs, lifting most of the equipment or parts you will need with you, saving on a crane.
exellence-4
Cage Outlets and Attachments
We provide all necessary utility outlets and cage attachments for every job at heights.
exellence-5
Quick Lift Setup
Your boom lift truck will be ready in 10-15 minutes for you and your crew to be lifted. It takes up to 5 minutes to reach 300 feet.
exellence-6
Workers’ Comfort and Productivity
What other manlift includes a chair, a sunshade, a heater, heated non-slip floors, or an air conditioner?

A-150 CASE STUDY

Monopine Tower New Sector and Antenna Installation
How to Save 2X on Equipment and Crew Time Needed for a Monopine Tower
Antenna Installation

Alpha Platforms was referred to a global telecom provider seeking to install new antennas on a monopine tower. The provider wanted to take advantage of the 5G transition by efficiently completing projects without expanding their workforce. Typically, such projects require at least 4 people and the rental of a crane and manlifts.

Alpha Platforms deployed A-150, which stands at a height of 150 feet and features an oversized 12-foot basket capable of holding 1,322 lbs. This platform comes with the Power Lift System™ that can efficiently hoist up to 900 lbs of antennas, sectors, or other equipment, making...

Read how the project was accomplished within two days, encompassing tasks such as antenna mount installation, setting up 3 sectors with a total of 9 antennas, and establishing all cable connections. Learn how the client's costs for equipment and personnel were minimized by opting to rent a single boom lift and employing only two technicians for the project's duration.

Read 150-Ft Boom Lift Case Study Now

why alpha boom lifts

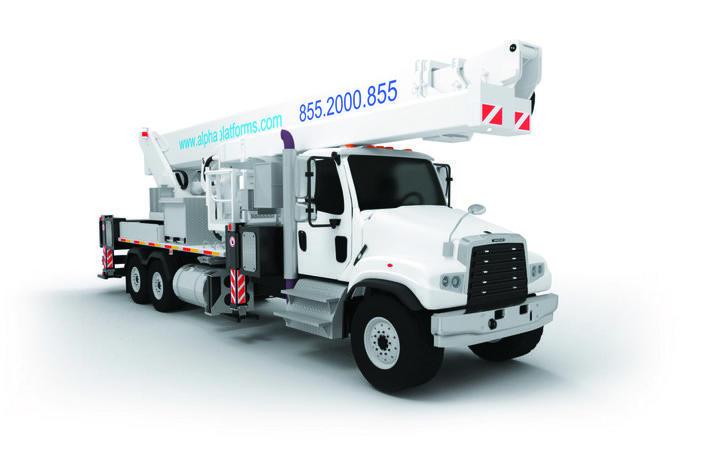

video
