150-Foot Boom Lift

148’ / 45 m
Max working height
95’ / 29 m
Max horizontal outreach
1,322 lbs / 600 kg
Max cage load
1,540 lbs / 700 kg
Max heavy duty cage load

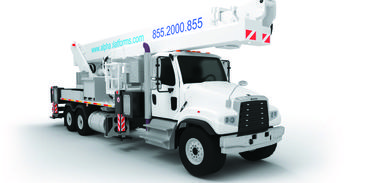

A-150 platforms are true workhorses to carry the bulk of your daily workload when you work at heights. Their lightweight and compact size in transport position make them perfect for any city work.

A heavy-duty Freightliner chassis, powerful engine, auto leveling outriggers, and a 12-foot wide cage with all standard A-line cage features and options offer great versatility in a myriad of everyday uses for this boom lift.

The 30-foot upper boom provides generous up-and-over reach essential for various applications.

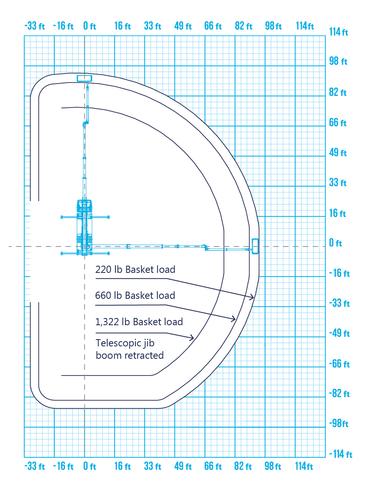

Max. working height
148’ / 45 m
Max. cage floor height
141’ / 43 m
Max. horizontal outreach
95’ / 29 m
Max. working range bellow floor level
20’ / 6 m
Max length of jib boom
31’6’’ / 9.65 m
Turntable rotation
Min. stabilizer spread
8’6” / 2.95 m (within truck width)
Max. stabilizer spread
20.3” / 6.2 m
Unit dimensions in transport position
39’3” x 8’6” x 13’1” / 12 m x 2.59 m x 4 m
Gross vehicle weight
48,600 lbs
Max. extendable cage load
1,322 lbs / 600 kg
Extendable cage dimensions
12’7” x 3’4” x 3’6” / 3.88 m x 1.05 m x 1.1 m
Max. heavy duty cage load
1,540 lbs / 700 kg
Heavy duty cage dimensions
8’1” x 3’4” x 3’6” / 2.47 m x 1.05 m x 1.1 m
Cage rotation
2 X 80 degrees
Socket in the basket
230V / 110V / 24V DC
Hydraulic power outlet
200 bar (2,900 PSI), 10 l/min (2.6 GPM)
High pressure air line / heater / A/C / halogen lights inside the cage
Movable cage controls panel with graphic display
Secondary controls station at a turntable
Rain cover, sunshade, hoist, winch


See Other Boom Lift Heights

The tallest boom lift in the world - 300 Ft Boom Lift
300 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 300’ / 90 m
Side reach: 106’ / 32.3 m
Cage load: 1,168 lbs / 530 kg
250 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 246’ / 75 m
Side reach: 128' / 39 m
Cage load: 1,322 lbs / 600 kg
230 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 230’ / 70 m
Side reach: 115’ / 35 m
Cage load: 1,322 lbs / 600 kg
210 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 210’ / 64 m
Side reach: 133’ / 40.5 m
Cage load: 1,322 lbs / 600 kg
190 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 187’ / 57 m
Side reach: 135’/ 41 m
Cage load: 1,322 lbs / 600 kg
175 Foot Boom Lift
Truck-Mounted Aerial Work Platform
Max height: 175’ / 53 m
Side reach: 130’ / 39.5 m
Cage load: 1,322 lbs / 600 kg
Extreme Boom Reach
Hard-to-believe capabilities of height reach (up to 300 feet), side reach (up to 135 feet), up and over reach (up to 100 feet), and any hard-to-reach places.
Crew Safety and Accident Prevention
With three built-in overload and reach control systems, our lifts minimize the impact of human error.
Large Heavy-Duty Basket
Our 12-foot basket accommodates up to 6 people. It lifts up to 1,322 lbs, lifting most of the equipment or parts you will need with you, saving on a crane.
Cage Outlets and Attachments
We provide all necessary utility outlets and cage attachments for every job at heights.
Quick Lift Setup
Your boom lift truck will be ready in 10-15 minutes for you and your crew to be lifted. It takes up to 5 minutes to reach 300 feet.
Workers’ Comfort and Productivity
What other manlift includes a chair, a sunshade, a heater, heated non-slip floors, or an air conditioner?

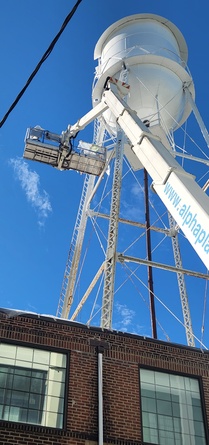

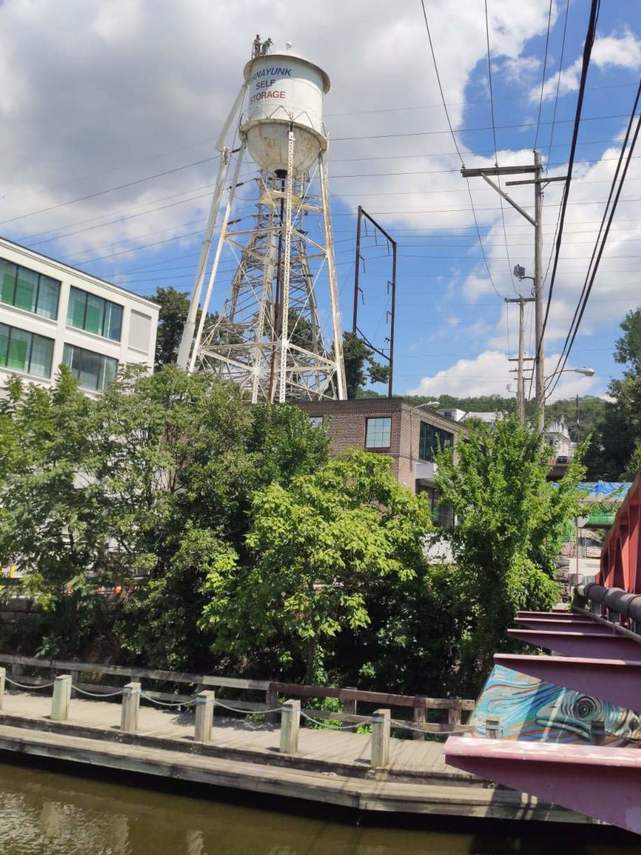

Commercial Painting
How to Paint a Hard-to-Reach, Roof-Based Water Tower Next to Power Lines from Sloped Pavement in Half the Time

A commercial painting company reached out to Alpha Platforms to hire an aerial platform to paint a water tank. Previously, the company used JLG self-propelled lifts from Sunbelt. The challenge was that the tower was located on top of a building, cornered between a railroad, a power line, a bridge, and a wall. In addition, half of the job site was on a significant slope.

Due to Alpha Platforms lifts' unique "up and over" and side-reach capabilities, the entire project was completed from just two set-up locations inside the parking lot. Read how our full-time operator helped the painting team focus on their job and complete it in half the planned time.

Read 150-Ft Boom Lift Case Study Now

why alpha boom lifts
Our precise German-made lifts have become the height access method of choice for those who try them, as they combine unmatched productivity, safety, and reach.

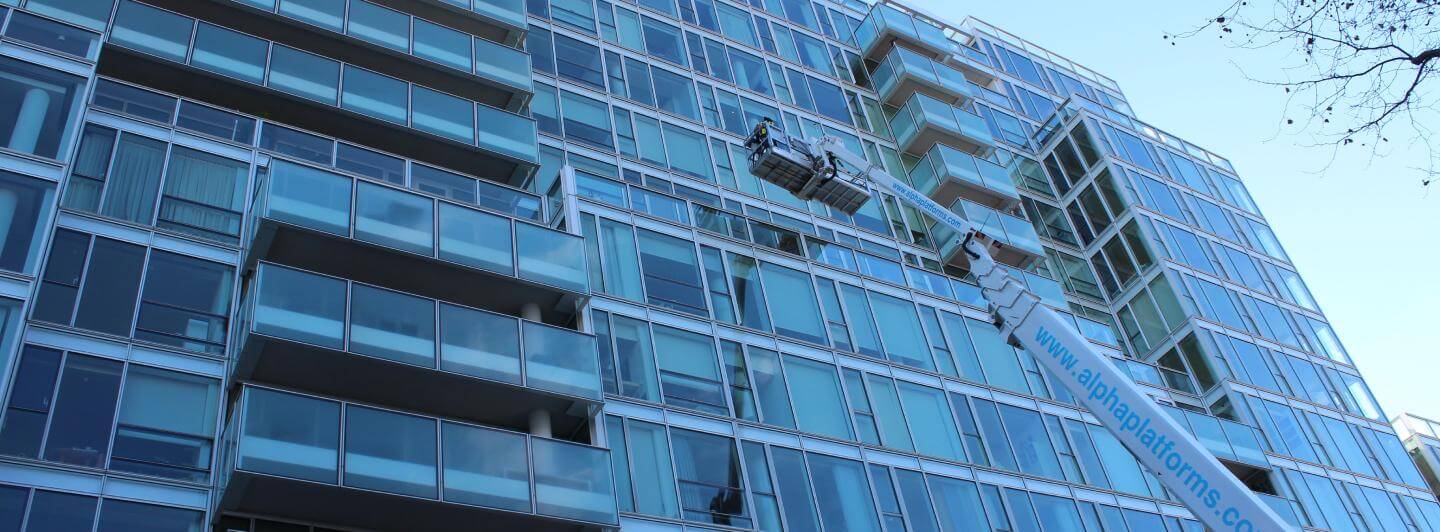

Play video

MORE A-150 Case Studies

Is 150’ boom lift the height you need for your projects?
Sometimes, a smaller lift is enough.
Ask now and save
