How to Inspect Metal Fatigue Under a Bridge from a Rough, Uneven River Bank in a Couple of Hours

Bridge Inspection and Repair from Uneven River Bank

Case Study:

How to Inspect Metal Fatigue Under a Bridge from a Rough, Uneven River Bank in a Couple of Hours

What was the challenge?

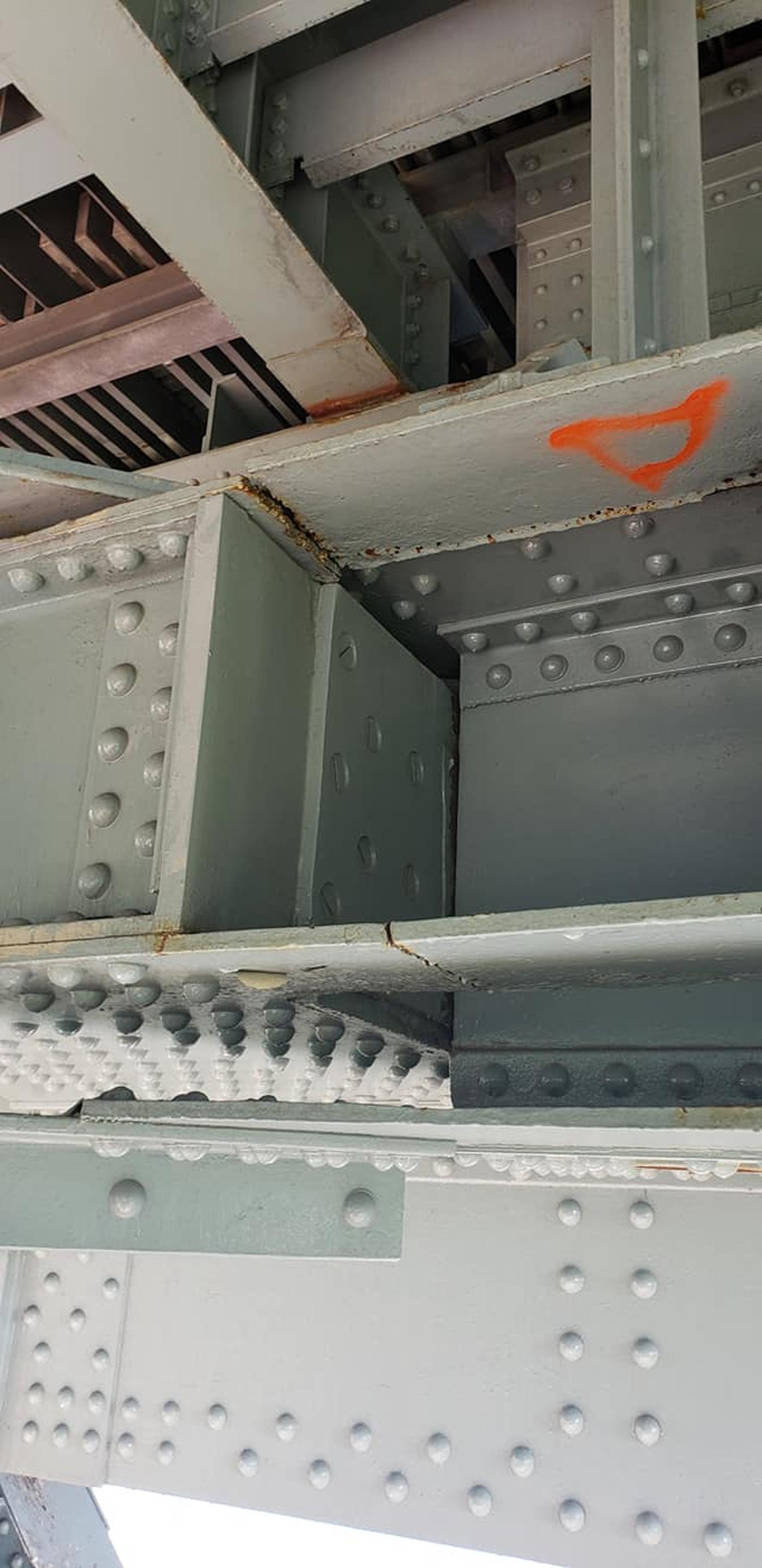

The RFK Bridge (f.k.a. Triborough Bridge) is one of the busiest bridges in the country, connecting Manhattan with its two boroughs, Queens and Bronx. It carries approximately 200,000 vehicles per day. New York City bridges are some of the best-maintained bridges in the nation, undergoing regular inspection and maintenance. Upon a routine walk-through, structural engineers noticed a crack in the metal pillar construction just under the deck. They needed to get closer to assess the wear and tear and develop a plan of repairs.

The crack was in the most inaccessible location: under the deck in the middle of a pillar standing on very uneven ground, above the fence behind the shrubs along East River bank.

Renting a typical JLG was not an option, as the only approach to the site for a trailered JLG was over a curb and down the river bank, a perfect recipe for tipping over the boom lift. Moreover, JLGs have a high risk of tipping over on rough, uneven ground.

One of our clients referred Alpha Platforms as a solution to the engineering firm.

What was the solution?

How to Inspect Metal Fatigue Under a Bridge from a Rough, Uneven River Bank in a Couple of Hours Solution
1
During the free project feasibility assessment, we were prohibited from parking the boom lift on the asphalt road near the pillar where it would have blocked skaters and runners. So, we decided to park the lift directly under the pillar.
2
Alpha Platforms dispatched its A-150, a 150-foot aerial lift that is our lightest boom lift. The A-Series can safely work on steep slopes of up to 6°, sometimes more, thanks to self-leveling outriggers and extra cribbing.
3
The specs of our state-of-the-art A-150 lift:
Details

What was the outcome?

Our experienced professional operator lifted two engineers to the observed crack to complete all documentation, including measurements, videos, and pictures.

Because the engineers could focus solely on the inspection, their total project time was significantly reduced to a couple of hours.

video
Our precise German-made lifts have become the height access method of choice for those who try them, as they combine unmatched productivity, safety, and reach.
Play video
Notable 150 Foot Boom Lift Capabilities
  • 12-foot extra large cage
  • 1,320 lbs lifting capacity for crew, equipment, and materials
  • Side reach up to 95 feet
  • Parking on a slope up to 10°
  • Jib length 31’ 6’
  • Parking in tight spaces 8’6’’ wide
  • Cage rotation 2 x 80°
