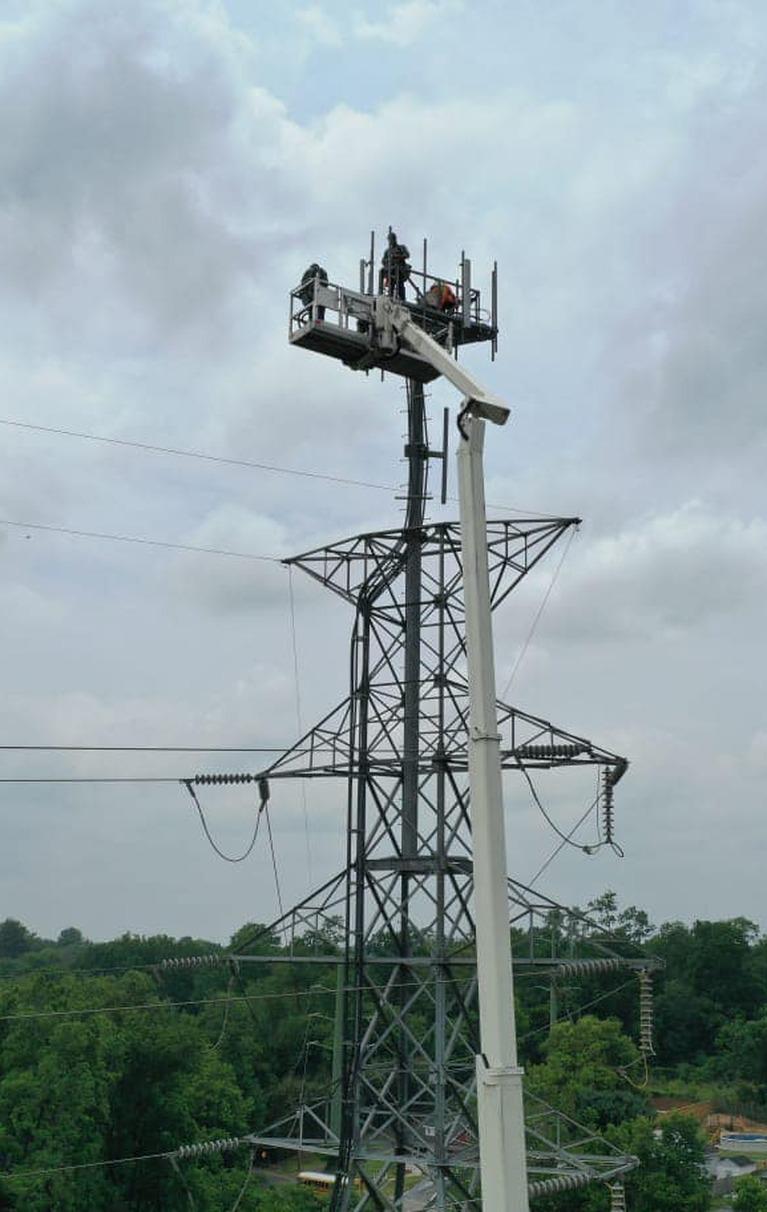

Alpha Platforms A-175 lift at Cell antenna replacement

Cell antenna replacement

Case Study:

Cell antenna replacement above high-voltage transmission lines

What was the challenge?

Our client, a well-established electrical construction company, needed to replace cell antennas and conduct maintenance work on a lattice tower located above high-voltage transmission lines. They required access around the lattice tower over high-voltage transmission lines to install antennas.

The original plan was to use their own JLG lift. To prepare for the project the high-voltage power line was de-energized and a team of technicians arrived at the site. When it became apparent that the JLG lift available was unable to be properly set up on a steep angle slope, the project was in danger of falling behind schedule. The client was looking for a quick solution since a high-voltage transmission line tower could not be de-energized for a long time.

The crew also needed enough room in the basket for four technicians, their equipment, and antennas while ensuring safety during maintenance.

What was the solution?

Alpha Platforms 175 foot boom lift setup at cell site
1
The generous size of Alpha Platforms’ lift basket of over 12’, its electric power, the overall value offered by operated rentals, and the all-inclusive service convinced the client to give us a try. Our team conducted a site evaluation, selected the appropriate boom lift, and successfully deployed it the following day.
2
After carefully inspecting the site and considering the rough terrain, Alpha Platforms chose to utilize the highly maneuverable A-175 lift for the job due to the enormous side outreach at a working height of up to 175 feet. An all-wheel drive, extra-heavy duty chassis, light boom structure, 30-foot upper boom, and a basket rotation of 2 x 200 degrees allow a record 130-foot side reach and provide exceptional mobility, taking flexibility and up-and-over reach to the next level.
3

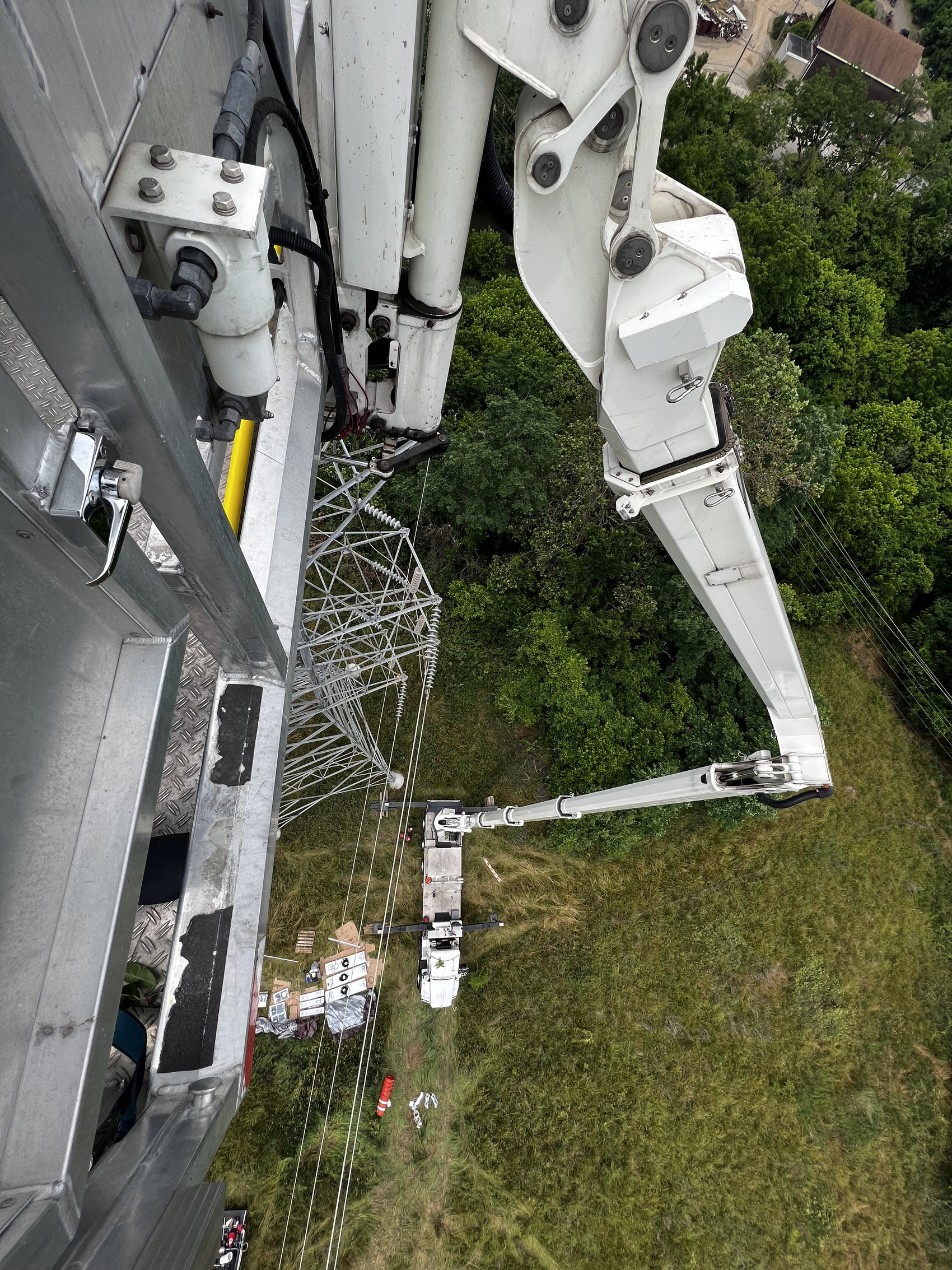

The oversized 12-foot wide workman basket lifts 1,322 lbs of loads maximizing worksite flexibility and efficiency. This boom lift was perfect for carrying a four-technician crew and their tools, parts, and materials to the top of the lattice tower. On the way to the work site, we passed this JLG still parked in the grass.
4
The specs of our state-of-the-art A-175 lift:
Details

What was the outcome?

Alpha Platforms lift is known for its swift setup, enabling your crew to start work in just 15 minutes upon arrival. This particular project, however, required extra effort to ensure a flawless installation on an extremely rugged surface. The operator’s diligence paid off, showcasing the efficient elevation of the crew and the lift performance.

Due to Alpha Platforms lifts' unique "up and over" maneuverability, the project was completed from a single setup location next to the tower high above the ground.

The lift did not touch any lines or hit any antennas while accessing the tower’s entire perimeter. Thanks to Alpha's next-gen equipment and the expertise of a professional lift operator, our Client completed the project within a short time of just 4 days. The client was impressed by the lift's smooth and fast movements and the feeling of the basket's extreme stability.

video
Our precise German-made lifts have become the height access method of choice for those who try them, as they combine unmatched productivity, safety, and reach.
Notable 175 Foot Boom Lift Capabilities
  • 12-foot extra large cage
  • 1,322 lbs lifting capacity for crew, equipment, and materials
  • Side reach up to 130 feet
  • Jib length 31’6’’
  • Parking in tight spaces 8’6’’ wide
  • Cage rotation 2 x 80°
