Construction in Tight Spaces
How to Skip the Crane and Squeeze a 230-Foot Boom Truck in a Narrow 10-Foot Glass-Walled Well of a New York City Landmark Building
What was the challenge?

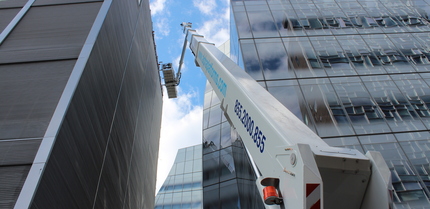

The local construction contractor had to cover two glass sides of a 9-story residential dwelling with decorative grill façade panels. This building is adjacent and sits precariously close to the legendary glass IAC Building, known as "The Iceberg." The job site presented significant challenges with its narrow access alley to the building, fragile walls of glass on both sides of the alley, a busy city street, and seemingly impossible-to-reach spaces.
- The narrow, sloped garage driveway dividing the two buildings varied between a mere 10 to 22 feet wide. Neither the crane nor the man-lift would fit. It would be impossible to fit both.
- Each grill unit was 15 feet long and weighed about 100 lbs., making it hard to maneuver in such a tight space.
- A man-lift's typical jerky motions would increase the risk of scratching or breaking the glass. Setting up a JGL on the street would make it impossible to access the Iceberg-facing sidewall.
- Setting a JLG on the sloped driveway leading to the Iceberg building’s underground garage was not possible.
- JLG did not offer a boom long and maneuverable enough with the powerlifting attachments necessary for this job.
What was the solution?
What was the outcome?
An efficient setup enabled the work to start immediately and cover both sides of the building from a single parking spot. The entire job was projected to take two weeks.
The A-230, with its unprecedented maneuverability and 115-foot side reach, with a generous cage rotation of 2 x 80 degrees, lifted the panels without needing a crane, saving tens of thousands of dollars.
- 12-foot extra large cage
- 1,322 lbs lifting capacity for crew, equipment, and materials
- Side reach up to 115 feet
- Unique "under and up" or "up and over and back" access
- Jib length 31’6’’
- Parking in tight spaces 8’6’’ wide
- Cage rotation 2 x 80°
- Smooth controlled motions to move close to and around glass and fragile structures
